Types of Transmission Towers: Exploring Designs, Advantages, and Applications


Transmission towers, often overlooked but integral to the power grid, come in various forms, each designed to meet specific requirements of power transmission. In this in-depth exploration, we will delve into five primary types of transmission towers, examining their designs, advantages, and applications to gain a comprehensive understanding of their role in the realm of power transmission.

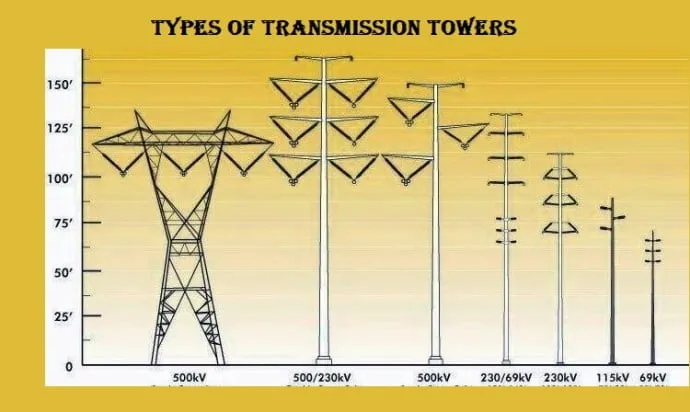

Types of Transmission Towers
Types of Transmission Towers

Design Challenges and Engineering Ingenuity:

Transmission towers bear a substantial responsibility, carrying the weight of transmission conductors at a safe height above the ground while braving the forces of nature. The design of transmission towers is a nuanced engineering endeavor, where principles from civil, mechanical, and electrical engineering converge to create structures capable of withstanding diverse natural calamities.

Transmission Tower Components:

1. Peak of Transmission Tower:

The summit above the top cross arm is known as the peak of the transmission tower. This pinnacle often hosts the earth shield wire, intricately connected to ensure a safeguard against external influences.

2. Cross Arm of Transmission Tower:

Elegantly holding the transmission conductor, the cross arms of the transmission tower vary in dimension based on factors such as transmission voltage, configuration, and stress distribution angles.

3. Cage of Transmission Tower:

The section between the tower body and peak is aptly termed the cage of the transmission tower. This segment of the structure cradles the cross arms, contributing to the tower’s overall stability.

4. Transmission Tower Body:

Extending from the bottom cross arms to the ground level, the transmission tower body plays a pivotal role in maintaining the necessary ground clearance for the transmission line’s bottom conductor.

5. Leg of Transmission Tower:

The structural support that anchors the tower to the ground, ensuring stability and resilience against external forces.

6. Stub/Anchor Bolt and Baseplate Assembly:

The foundation of the tower, providing stability and anchoring the structure to the ground.

Transmission Tower Design Considerations:

In the intricate process of designing transmission towers, several crucial considerations come into play:

  1. Ground Clearance: Determined by factors such as the lowest conductor point above the ground level, it ensures safety and reliability in power transmission.
  2. Insulator String Length: A critical factor influencing the design, ensuring proper insulation and protection of the transmission line.
  3. Clearance Between Conductors and Tower: Maintaining safe distances between conductors and between conductors and the tower to prevent electrical interference.
  4. Location of Ground Wire: Strategic placement of the ground wire concerning the outermost conductors, crucial for lightning protection and overall system integrity.
  5. Midspan Clearance: Accounting for dynamic conductor behavior and considering lightning protection, optimizing the overall performance of the power line.

Types of Transmission Towers

1. Lattice Towers

Design: Lattice towers are characterized by their intricate network of steel structures, resembling a lattice or grid. The design consists of triangular or rectangular frameworks that distribute the load evenly across the tower.


  • Lightweight Construction: The open lattice structure reduces the overall weight of the tower, making it cost-effective in terms of material usage and transportation.
  • Cost-Effective: Lattice towers are economical to manufacture and install, making them a popular choice for power transmission projects.
  • High Resistance: The design provides high resistance to wind and ice loads, ensuring stability in adverse weather conditions.


  • Lattice towers are commonly used in high voltage transmission lines and cross-country power corridors, where their strength and cost-effectiveness are significant advantages.

2. Tubular Steel Towers

Design: Tubular steel towers feature a cylindrical or polygonal hollow steel structure, offering a sleek and modern appearance. The tubular shape enhances the tower’s ability to withstand lateral loads.


  • Aesthetic Appeal: The design offers an aesthetically pleasing alternative to lattice towers, making them suitable for areas where visual impact is a concern.
  • Resilience to Extreme Weather: Tubular steel towers are known for their resilience to extreme weather conditions, such as hurricanes or typhoons.
  • Reduced Maintenance: The design reduces maintenance requirements, contributing to cost savings over the tower’s lifespan.


  • Tubular steel towers find applications in coastal regions with high wind exposure and urban areas where aesthetics play a crucial role.

3. Monopole Towers

Design: Monopole towers are single, self-supporting poles, eliminating the need for multiple legs or guy wires. They can accommodate multiple circuits within a single structure.


  • Small Footprint: Monopole towers have a small footprint, making them suitable for areas with limited space.
  • Minimal Landscape Impact: The streamlined design minimizes the impact on the landscape, making them suitable for urban areas with space constraints.
  • Easy Installation: Monopoles are relatively easy to install, particularly in confined spaces where larger tower installations might be impractical.


  • Monopole towers are commonly used in urban areas with limited space and regions with strict zoning regulations.

4. Guyed Towers

Design: Guyed towers are supported by cables or rods anchored to the ground. This additional support provides stability, allowing for the construction of taller towers.


  • Cost-Effective for Tall Structures: Guyed towers are cost-effective for tall structures, as the additional support reduces the amount of material required.
  • Suitable for Uneven Terrains: The design is suitable for uneven terrains, making them ideal for remote or mountainous regions.
  • Lower Material Requirements: Guyed towers often require fewer materials compared to self-supporting towers.


  • Guyed towers are commonly used in remote and mountainous regions and for long-distance transmission lines.

5. Concrete Towers

Design: Concrete towers are constructed using reinforced concrete, offering high durability and resistance to corrosion.


  • Long Lifespan: Concrete towers have a long lifespan, contributing to the longevity of the power transmission infrastructure.
  • Minimal Maintenance: The robust construction reduces maintenance requirements over time.
  • Resistance to Corrosion: Concrete towers are resistant to corrosion and rust, making them suitable for harsh environmental conditions.


  • Concrete towers are commonly used in coastal areas with high salt content in the air and regions with aggressive environmental conditions.

Comparison of Transmission Towers

Now, let’s compare these types of transmission towers across various parameters:

1. Structural Design:

  • Lattice Towers: Open lattice structure, triangular or rectangular frameworks.
  • Tubular Steel Towers: Cylindrical or polygonal hollow steel structure.
  • Monopole Towers: Single, self-supporting pole.
  • Guyed Towers: Supported by cables or rods.
  • Concrete Towers: Constructed using reinforced concrete.

2. Advantages:

  • Lattice Towers: Lightweight, cost-effective, high resistance to wind and ice loads.
  • Tubular Steel Towers: Aesthetic appeal, resilience to extreme weather, reduced maintenance.
  • Monopole Towers: Small footprint, minimal landscape impact, easy installation.
  • Guyed Towers: Cost-effective for tall structures, suitable for uneven terrains, lower material requirements.
  • Concrete Towers: Long lifespan, minimal maintenance, resistance to corrosion.

3. Applications:

  • Lattice Towers: High voltage transmission lines, cross-country power corridors.
  • Tubular Steel Towers: Coastal regions with high wind exposure, urban areas.
  • Monopole Towers: Urban areas with limited space, areas with strict zoning regulations.
  • Guyed Towers: Remote and mountainous regions, long-distance transmission lines.
  • Concrete Towers: Coastal areas with high salt content, regions with aggressive environmental conditions.


  1. What types of towers are used in transmission lines? Lattice towers, tubular steel towers, monopole towers, guyed towers, and concrete towers are commonly used in transmission lines.
  2. What is the structure of a transmission tower? The structure of a transmission tower typically includes a peak, cross arm, cage, transmission tower body, leg, and stub/anchor bolt assembly.
  3. What are suspension and tension towers? Suspension towers carry the weight of conductors using insulators, while tension towers provide support to conductors in the direction of tension.
  4. What are the four types of transmission lines? The four types of transmission lines based on the angle of deviation are A-type, B-type, C-type, and D-type towers.
  5. What is the most common type of transmission tower? Lattice towers are the most common type of transmission tower.


In conclusion, the diversity of transmission tower types allows for tailored solutions to specific challenges in power transmission. Whether it’s the cost-effective lattice towers, the aesthetic appeal of tubular steel towers, the space-saving monopoles, the stability of guyed towers, or the durability of concrete towers, each type has its unique advantages and applications. The selection of the appropriate tower type depends on factors such as environmental conditions, space availability, and aesthetic considerations.

As technology continues to advance, transmission tower designs will likely evolve, contributing to the overall efficiency and sustainability of power transmission networks. A thorough understanding of these tower types and their characteristics is essential for designing a robust and reliable power transmission infrastructure that meets the demands of the modern electrical grid. The continuous innovation in transmission tower design ensures that power systems remain resilient, adaptable, and well-equipped for the challenges of the future.
