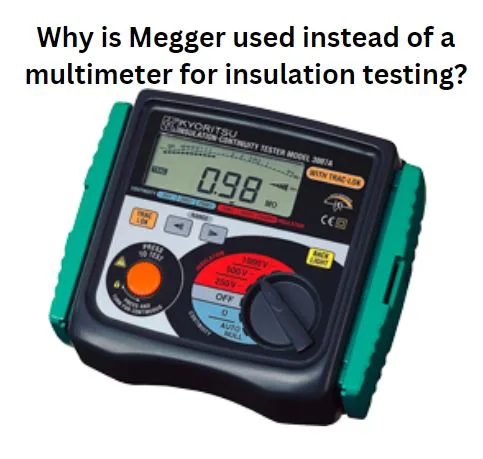

Why is Megger used instead of a multimeter for insulation testing?

Answer:

Megger is preferred over a multimeter for insulation testing because it applies a higher voltage, typically 500V or more, which is necessary to accurately assess the insulation resistance and detect potential faults.

Reasoning:

Insulation testing requires the application of a higher voltage to accurately measure the resistance of insulation in electrical systems. Meggers are specifically designed for this purpose, typically applying voltages of 500V or more. Multimeters, on the other hand, usually provide lower voltage ranges, which may not be sufficient for insulation testing. Moreover, Meggers are built with features like insulation resistance measurement and voltage regulation tailored for this task, ensuring accurate and reliable results. Attempting insulation testing with a multimeter might yield inaccurate readings and could potentially damage the device due to the high voltage involved.

FAQs:

What voltage does a Megger typically apply?

A Megger typically applies voltages of 500V or higher for insulation testing.

Can I use a multimeter for insulation testing?

While technically possible, multimeters are not recommended for insulation testing due to their lower voltage ranges.

What are the risks of using a multimeter for insulation testing?

Using a multimeter for insulation testing can lead to inaccurate readings and potential damage to the device due to inadequate voltage levels.

How does a Megger ensure accurate insulation testing?

Meggers are designed with features like insulation resistance measurement and voltage regulation tailored for insulation testing, ensuring accuracy and reliability.

Why is higher voltage necessary for insulation testing?

Higher voltages are required to accurately measure the resistance of insulation in electrical systems.

Can a Megger be used for other types of testing?

Yes, Meggers can also be used for testing the continuity of wires and cables, as well as for detecting faults in electrical circuits.

Are there different types of Megger available?

Yes, there are various types of Megger instruments available, including analog and digital versions with different voltage ranges and features.

What should I consider when choosing a Megger for insulation testing?

Factors to consider include the voltage range, accuracy, features like automatic discharge, and portability of the Megger instrument.

Can insulation testing prevent electrical hazards?

Yes, regular insulation testing can help identify potential faults in electrical systems, preventing hazards such as short circuits and electrical fires.

Is insulation testing mandatory for electrical systems?

While not always mandatory, insulation testing is recommended as part of routine maintenance to ensure the safety and reliability of electrical systems.
