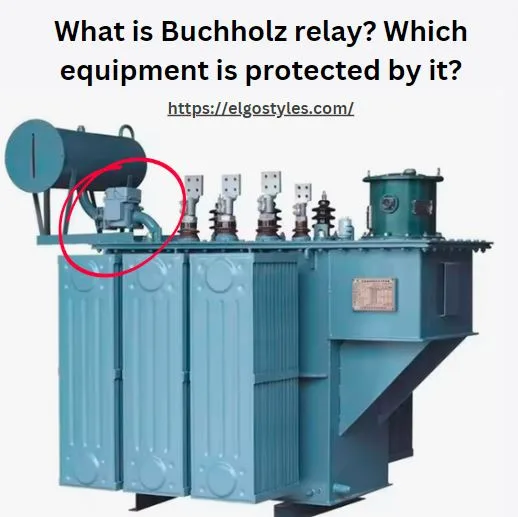

What is Buchholz relay? Which equipment is protected by it?

Answer:

A Buchholz relay is a safety device used in oil-filled power transformers and reactors to detect faults such as gas accumulation, oil leakage, or overheating. It protects these equipment by triggering alarms or disconnecting them from the power supply in case of a fault.

Reasoning:

A Buchholz relay is a protective device installed in oil-filled power transformers and reactors. It consists of floats with mercury switches in a chamber connected to the oil piping between the conservator and the main tank. When a fault occurs inside the equipment, such as gas accumulation, oil leakage, or overheating, the relay detects these abnormalities. Gas accumulation due to faults leads to the displacement of oil, causing the floats to tilt and activate the switches. This triggers alarms or disconnects the equipment from the power supply, preventing further damage and fire hazards. Named after its inventor, Max Buchholz, the relay has been in use since 1921 and is essential for transformers and reactors rated higher than 500 kVA.

FAQs:



What is a Buchholz relay?

A Buchholz relay is a safety device used in oil-filled power transformers and reactors to detect faults.

What does a Buchholz relay detect?

It detects faults such as gas accumulation, oil leakage, and overheating inside the equipment.

How does a Buchholz relay work?

It uses floats with mercury switches in a chamber connected to the oil piping to detect abnormal conditions.

What happens when a fault is detected by a Buchholz relay?

It triggers alarms or disconnects the equipment from the power supply to prevent further damage.

Why is a Buchholz relay important?

It helps prevent catastrophic failures, fire hazards, and damage to transformers and reactors.

Who invented the Buchholz relay?

It was invented by Max Buchholz in 1921.

What equipment is protected by a Buchholz relay?

Oil-filled power transformers and reactors are protected by it.

At what rating are Buchholz relays typically used?

They are commonly used in transformers and reactors rated higher than 500 kVA.

What are the main components of a Buchholz relay?

It consists of floats, mercury switches, and a chamber connected to the oil piping.

How does a Buchholz relay contribute to system reliability?

By promptly detecting faults, it ensures the safe operation of electrical power systems.
